Safer and cleaner than natural gas, propane, or oil fired units, electric boilers offer dependable performance and efficiency. Other electric boiler advantages include:

  • Carbon neutral when combined with renewable energy sources
  • No waste gases generated
  • No exhaust flue necessary
  • No gas lines
  • Near-total efficiency
  • Quieter operation
  • Simple maintenance

Lathrop Trotter offers electric steam and hot water boilers from Precision Boilers. Our electric steam boilers suit a wide range of needs and are ideal for a variety of processes. For a high degree of flexibility in design and specification, our hot water boilers are an excellent option.

Hot Water Steam
50 MBH – 8,735 MBH 50 HP – 4200 HP
50 GPM – 1840 GPM 15 PSIG – 600 PSIG
120/230 1 Phase or 230/460/600 3 Phase 460/4160/13,200 V – 3 Phase

Precision Electric Boiler Benefits:

  • Custom models can be supplied in a ‘knock-down’ condition to fit through narrow entries
  • Step Circuit Enable/Disable switches make it easy to limit boiler’s maximum firing rate when other higher priority electric loads are peaking
  • Optional SCR control provides near infinite modulation to precisely follow heating load while minimizing energy usage
  • Requires no vent stack, breeching, or combustion air louvers—reducing total installation costs and speeding up completion

Ready to discuss your application? Contact us now!

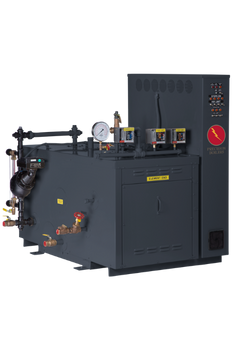

ST Electric Steam Boiler

Large steam chest ST St Electric Boiler

The large steam chest of the ST electric steam boiler delivers high quality, dry steam with minimum carryover. Each heating element is fitted with a 2-1/2” square mounting flange, individually installed in either one or both head(s) of the vessel for simple maintenance and reduced downtime.

  • Capacities: 100 PPH to 10,000 PPH (10 BHP to 300 BHP) @ 99.5% efficiency
  • Standard Model: ASME Section IV “H” Stamp (< 15 PSI) or Section I “S” Stamp (> 15psi)
  • Compliances: UL Subject 834, NEC/NFPA Article 424-G, ASME Safety Code CSD-1

Applications:

  • Low pressure heating and humidification loads
  • Craft Breweries and Distilleries
  • Schools

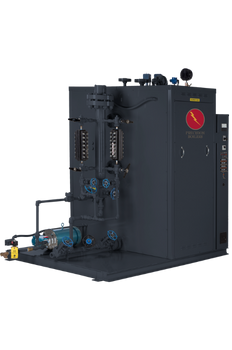

STH Electric High Pressure Steam Boiler

STH Electric steam boiler 200 psi operating system

The STH electric high pressure steam boiler provides high quality process steam for applications that require higher pressure process steam (> 200 psi operating) in a compact footprint. Ideal for high pressure process steam installations, this electric boiler saves time and money, with no need for custom ventilation.

  • Capacities: 100 PPH to 10,000 PPH (10 BHP to 300 BHP) @ 99.5% efficiency
  • Standard Model: ASME Section I “S” Stamp (>15 PSI)
  • Compliances: UL Subject 834, NEC/NFPA Article 424-G, ASME Safety Code CSD-1

Applications:

  • Food processing
  • Clean in Place applications
  • Fast acting backup steam
  • Bottling plants

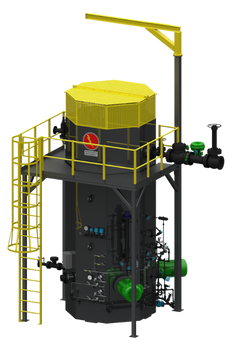

HVJ High Voltage Jet Electrode Steam Boiler

HVJ High Voltage Jet Electrode Boiler

The HVJ electrode boiler ramps up from standby to full output in minutes or even seconds, providing virtually instant steam as needed. This means significantly reduced energy costs when using off-peak power.

  • Capacities: 2,700 PPH to 140,000 PPH (80 BHP to 4,200 BHP) @ 99.5% efficiency
  • Standard Model: ASME Section I, Part PEB
  • Compliances: UL508A, ANSI/NFPA 79

This boiler is safe and environmentally friendly with an overall cost of ownership that is significantly less than most any fossil-fuel fired boilers.

  • Lower installed capital cost
  • Reduced insurance rates
  • Fewer maintenance costs
  • Lower energy and water treatment expense

Applications:

  • Large Process Loads
  • Chemical Plants
  • Distilleries
  • Aux Boilers for Power Plants
  • Fast Acting Backup Steam

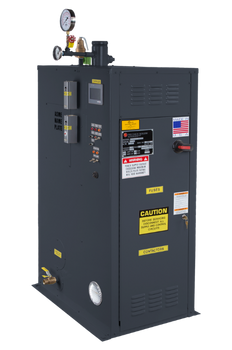

PCW Compact Electric Hot Water Boiler

PCW Compact Electric Hot Water Boiler

The compact footprint of the standard PCW electric hot water boiler is designed to fit through a 30” door so that it can fit where a fuel-fired boiler cannot. Each heating element is fitted with its own 2-1/2” square mounting flange, installed in the head of the vessel to provide ease of maintenance and minimal downtime.

  • Capacities: 50 MBH to 1,500 MBH (1.5 BHP to 44 BHP) @ 99.5% efficiency
  • Standard Model: ASME Section IV “H” Stamp (160 PSI & 250oF)
  • Compliances: UL Subject 834, NEC/NFPA Article 424-G, ASME Safety Code CSD-1

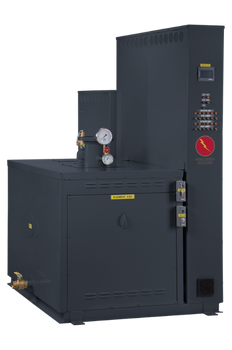

HW Electric Hot Water Boiler

HW Electric Hot Water Boiler

The model HW is almost the same as the PCW in terms of design and operation, but with a larger footprint to deliver higher heating capacity using a horizontal vessel configuration. Each of the heating elements is fitted with a 2-1/2” square mounting flange, installed in the head of the vessel for easy maintenance and limited downtime.

  • Capacities: 1,638 MBH to 8,735 MBH (48 BHP to 260 BHP) @ 99.5% efficiency
  • Standard Model: ASME Section IV “H” Stamp (160 PSI & 250oF)
  • Compliances: UL Subject 834, NEC/NFPA Article 424-G, ASME Safety Code CSD-1

Applications:

  • Schools
  • Manufacturing
  • Prisons

Need help selecting the right Electric Boiler? Contact us now!
